Composite Grating

Product Description

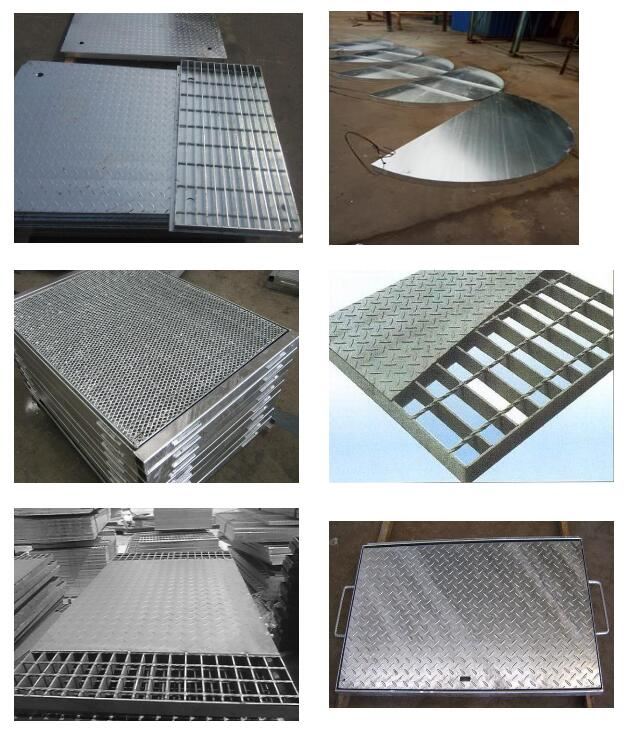

Composite grating, also referred to as composite bar grating or compound steel grating, is a unique product that combines steel gratings with impressive spanning capacity and checkered plates that have a sealing surface. This type of grating can be made using any steel grating type and checkered steel plates of varying thicknesses. Typically, the most commonly used bottom plate is the G323/40/100, with the riffled plate being 3mm thick, though one can use thicker 4mm, 5mm, or 6mm plates as well. Overall, composite grating is a highly versatile and reliable product suitable for various industrial and commercial applications.

Main Features

* High strength, light structure

* Strong anti-corrosion ability, durable

* Beautiful appearance, shiny surface

The perfect solution: a low-maintenance, self-cleaning marvel that requires no water, is impervious to dirt, rain, or snow. With this innovative technology, maintenance becomes a breeze as you can say goodbye to constant cleaning.

We should prioritize ventilation, good lighting, effective heat dissipation, non-slip surfaces, and reliable explosion-proof measures. It is crucial to rearrange and emphasize these points in order to address the original text information.

* Easy to install and disassemble

Installation method of Composite Bar Grating

One option for installing steel grating or tread plate is to weld it directly to the supporting steel structure. After welding, it is recommended to paint the welded area twice in order to ensure a durable and long-lasting installation.

The installation of this steel grating is made easier with the use of special installation clips that prevent damage to the galvanized layer. These clips are also designed for easy dismantling and reassembling as needed. Each set includes an upper clamp, a lower clamp, an M8 round head bolt, and a nut. With these components in place, the grating can be securely installed without compromising its protective coating.

Different fastening methods can be offered depending on specific requirements, including the use of stainless steel mounting clips or bolt connections.

The general spacing between steel grating installations is 100mm.

When you're installing the steel grating, it's important to make sure that it's firmly and securely in place. You should also check it regularly to make sure that the installation clamp hasn't become loose and fallen off. To help prevent vibrations, it's a good idea to either weld the steel grating in place or add rubber pads. By taking these precautions, you can help ensure that your steel grating remains stable and secure over time.
