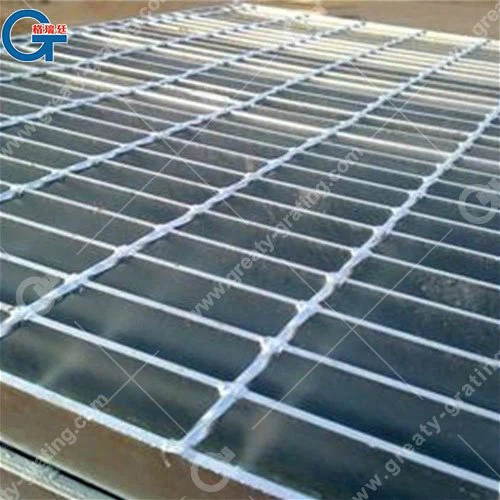

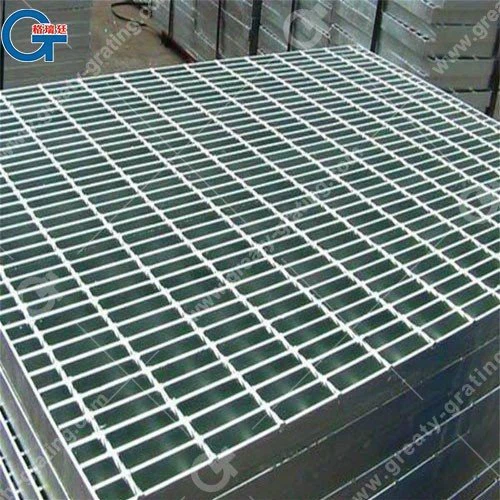

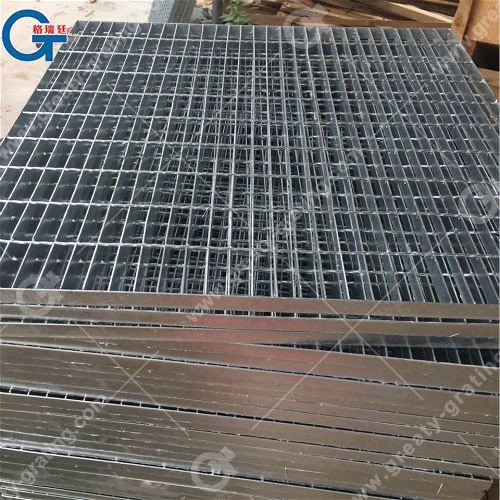

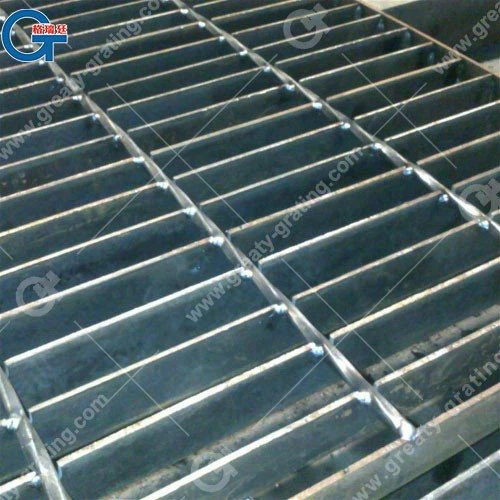

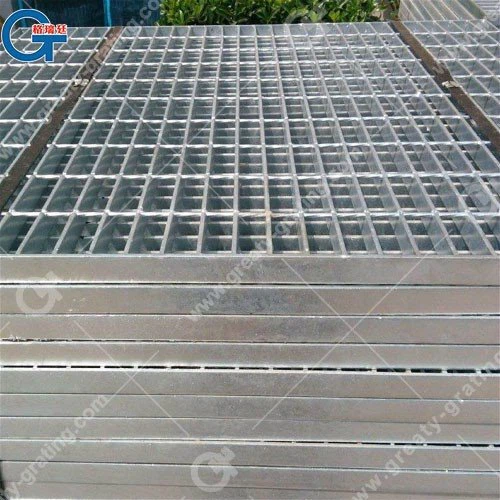

Welded Steel Grating
Product Description
One of the most frequently employed types of steel grating is welded steel grating, often referred to as welded grating, welded bar grating or metal open bar grating. This type of grating is incredibly versatile and can be found in a wide range of applications across many industries. Welded steel grating is constructed by welding metal bars together at regular intervals to create a strong and durable mesh-like structure. This allows the grating to be used in a variety of settings, including industrial floors, catwalks, stair treads, and other walkway areas. Due to its strong composition, welded steel grating is an excellent choice for environments that require high strength and durability.
The primary materials used for producing welded grating are carbon steel and stainless steel.
With its slip-resistant surface, resistance to corrosion, excellent drainage capabilities, impressive strength, and high load capacity, welded steel grating offers a multitude of benefits.
In numerous locations, welded bar grating serves as a walkway, stair treads, platform, fence, shelf, ceiling, and various floor. This type of grating has a wide range of applications and is a highly versatile choice. Its ability to be used in multiple settings makes it an excellent option for many construction and industrial projects. Whether used for aesthetic purposes or practical applications, welded bar grating is a popular solution for those seeking durability, strength, and reliability. With its superior design and quality construction, welded bar grating is a valuable addition to any project.
![]() | ![]() |

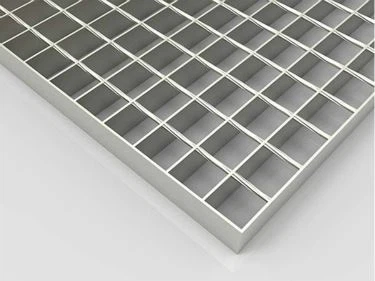

Welded Steel Grating with Smooth Surface Welded Steel Grating with Serrated Surface
Welded Steel Grating Specifications
* Material: carbon steel and stainless steel.
* Surface type: smooth surface, serrated surface.
* Surface treatment:There are various options for finishing materials, including galvanized, mill finished, painted, and powder coated. Each has its unique benefits and advantages. Galvanized finishes offer excellent rust resistance and durability. Meanwhile, mill finished materials have a smooth surface and are easy to form. Painted finishes provide a decorative touch and can be customized according to your specific color preferences. Finally, powder-coated finishes are highly durable and offer exceptional scratch and corrosion resistance. Consider your project's needs and choose the best finishing material that meets your requirements.

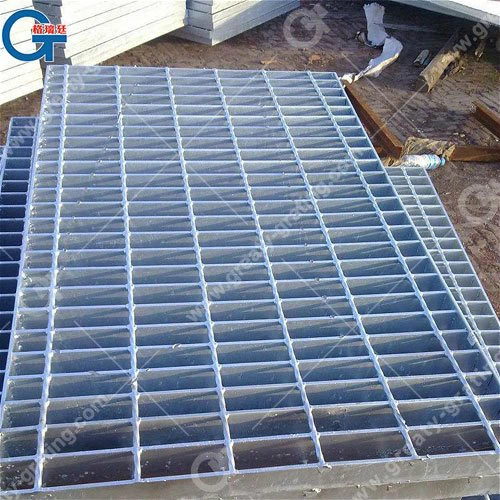

* Bearing bar type: plain bearing bar and serrated bearing bar.
* Standard pitch of cross bar: 50 mm & 100 mm.
Main Features
Size of Bearing Bar (mm) | Diameter of Cross Bar (mm) | Pitch of Bearing Bar (mm) | Pitch of Cross Bar (mm) |
20×3 | 6 | 30 | 100 |
20×5 | 6 | 30 | 100 |
30×3 | 6 | 30 | 100 |
30×4 | 6 | 30 | 100 |
30×5 | 6 | 30 | 100 |
32×3 | 6 | 30 | 100 |
32×5 | 6 | 40 | 100 |
35×3 | 6 | 40 | 100 |
35×5 | 6 | 40 | 100 |
40×3 | 6 | 40 | 50 |
40×4 | 6 | 40 | 50 |
40×5 | 6 | 40 | 50 |
45×5 | 10 | 60 | 50 |
50×5 | 10 | 60 | 50 |
55×5 | 10 | 60 | 50 |
60×5 | 10 | 60 | 50 |
65×5 | 10 | 60 | 50 |
70×5 | 10 | 60 | 50 |
* Light weight, high strength and large load capacity.
* Anti-slip safety.
* Modern style, nice appearance.
* Ventilated and light, corrosion resistance.
* Good drainage function.
* Durable, Easy to install, clean and maintain.
Applications
* Industrial and energy construction platform.
* Walkway, stair treads, bridge decking, ceiling, etc.
* Shelf of factory and supermarket.
* Trench cover and well cover of street.
* Grating fence of balcony.
* Floor grating in many places.
|
|
|
Platform Grating | Walkway Grating | Stair Treads |
|
|
|
Trench Cover | Grating Fence | Handrail Infill |
|
|
|
Bridge Decking | Ceiling | Sunshade Panels |
